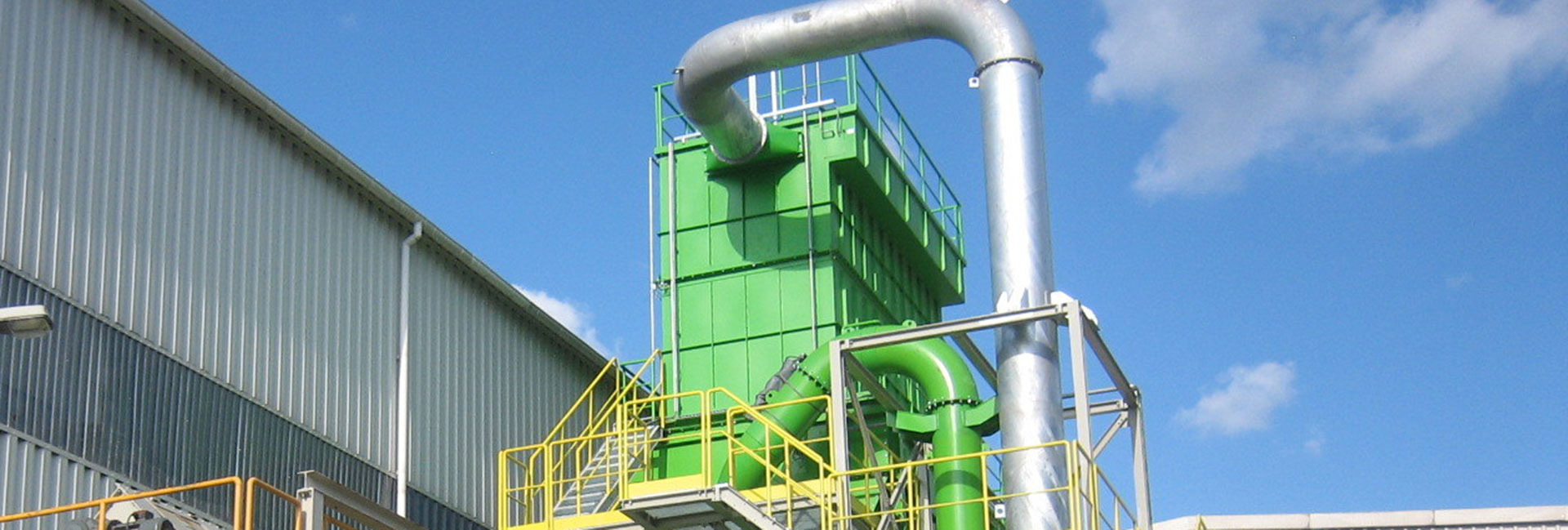

FlashDRYER

ODM - FlashDRYER FDY

High-performance drying of materials with our efficient FlashDRYER

We developed our FlashDRYER to provide our customers with a modular and flexible system for continuously drying bulk materials.

Bulk materials are dried and transported in a short time by a warm air stream – and all of this without interrupting operations. Heavy materials such as stone, metals, etc. are essentially automatically sorted out in a vertical air stream and are discarded in a separate container. The remaining dry materials are isolated in the intercepting chamber or in a cyclone.

The FlashDRYER is convincing with its simple and flexible design. There are no moving parts within the dryer, which delivers high availability with minimum maintenance effort.

DI MATTEO offers completely new units from scratch, a replacement of existing facilities, and spare parts for your existing equipment.


Benefits at a glance:

  • modular construction system
  • closed loop with recirculated air or open loop available
  • depending on assembly, available with only hot air blower on the suction side, or also with an additional pressurising booster ventilator on the pressurised side
  • available with an integrated bypass system
  • high availability
  • great flexibility
  • space-saving
  • extra drying systems can be incorporated
  • uses existing heated air, when available (e.g. from cement radiators)
  • incoming air temperature between 100°C and 330°C, depending on materials
  • up to 30 tons / hour, depending on implementation

REQUEST INFORMATION

ModularSYSTEM

Benefit from our modular system with construction components that have been tried and tested over many years. Our qualified specialists will be happy to put together the best possible complete solution for your application from the corresponding components.

Make an Enquiry

Our standard: individual machine configuration.

We offer you the possibility to adapt all machines to the requirements of your material. For this purpose, we use numerous options when selecting the design, the equipment and the materials of components. In the field of unique machine construction, we have been able to demonstrate our distinctive versatility and flexibility time and again.

Make an Enquiry


CUSTOMER SUPPORT

We are permanently at your side and will assist you before, during and after the product manufacture.

ALL-IN-ONE SERVICE

We not only accompany you during the design and production of the components and systems, but are also available to you during their commissioning, assembly, inspection, maintenance, modernisation and repair.

ORIGINAL- SPARE PARTS

Take advantage of our spare parts offers and extend the service life of your existing components and systems through low investment.

MADE IN GERMANY

Our components are manufactured on a production area of over 46,000 m2, largely independent of suppliers with a high degree of vertical integration.
