ODM - DiscSCREEN SSM
Efficient removal of oversize particles from bulk materials using the DI MATTEO DiscSCREEN
Application
The DiscSCREEN is designed for separation of oversize and foreign material from free-flowing bulk materials. It is installed upstream of subsequent equipment to ensure stable material flow and protect subsequent machinery.
Efficient oversize separation

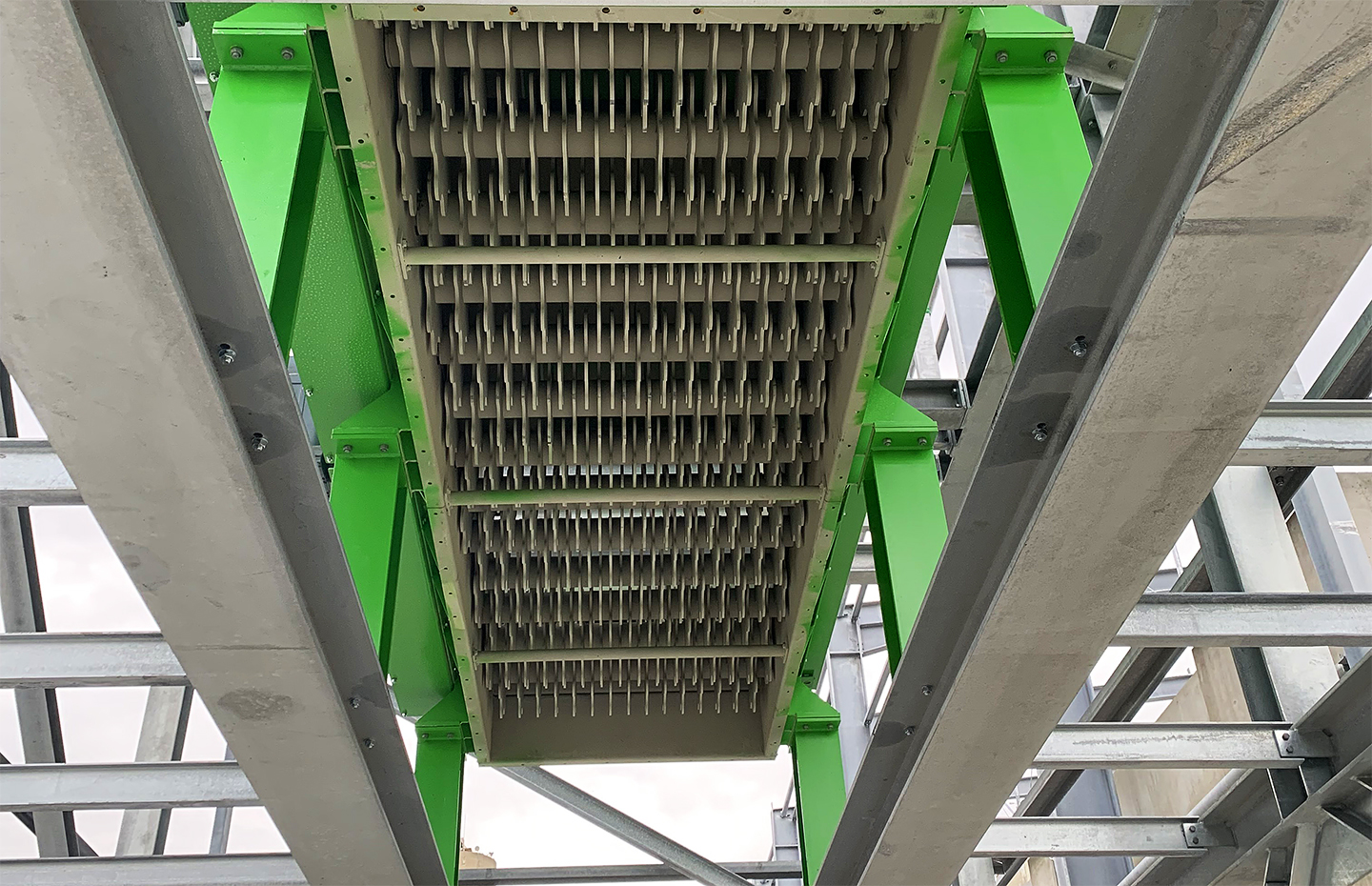

The DI MATTEO DiscSCREEN separates oversize particles from the material stream by means of rotating screening discs. Fines pass through defined disc distances, while coarse material is discharged separately. The separation principle supports uniform throughput and reduces the risk of blockages or damage to downstream equipment.
Adaptable to different bulk materials
For optimal classification performance, the DiscSCREEN can be configured to suit specific bulk material properties. Disc geometry, materials, distances and arrangement are selected according to the application. If material requirements change, disc distances can be adjusted accordingly. Depending on installation constraints, a slightly inclined arrangement can be implemented to further support material flow.
Robust design and high throughput capacity
The enclosed, dust-tight construction ensures durability and low maintenance requirements. The robust design supports high throughput rates and reliable operation. The modular concept allows system expansion in line with increasing capacity demands. In addition, speed adjustment enables adaptation of operating conditions to the specific separation task.
Benefits
- Separation of oversize particles and foreign matter
- Defined disc spacing, adjustable even after installation
- Adjustable rotational speed for optimisation of sorting performance
- Protection of downstream equipment through targeted coarse discharge
- Robust design for demanding operating conditions
- Modular design with separate drive per unit
- Enclosed design for low-dust conveying
- Low maintenance requirements, low operating costs and energy-efficient operation
ATEX compliant
For applications in hazardous areas, our equipment is available in compliance with ATEX Directive 2014/34/EU, ensuring safe and reliable operation in explosion-risk environments.
Temperature resistance
Our machines are engineered to match your specific requirements and operating environments, covering a wide range of operating temperatures – from extremely low to very high temperature conditions.
Modular
System Design
The modular system provides maximum flexibility: proven components can be combined, expanded or adapted as required. The result is an economical solution that grows with your requirements.
Customised
machine configuration
Each system is tailored to the specific conditions of your material and process. From component configuration to material selection, we deliver application-specific engineering that combines efficiency with reliable, long-term operation.
